06/16/2008 - TOCHIGI, Japan

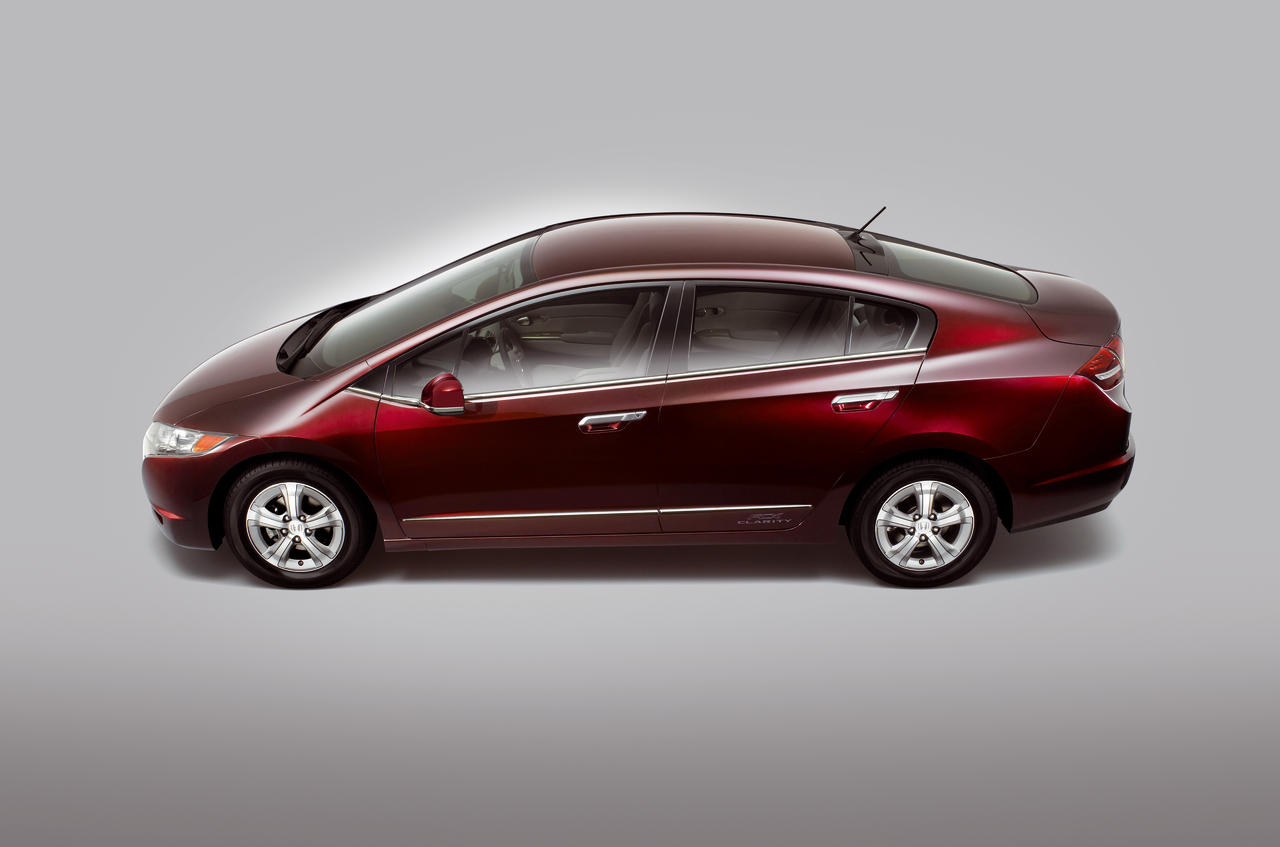

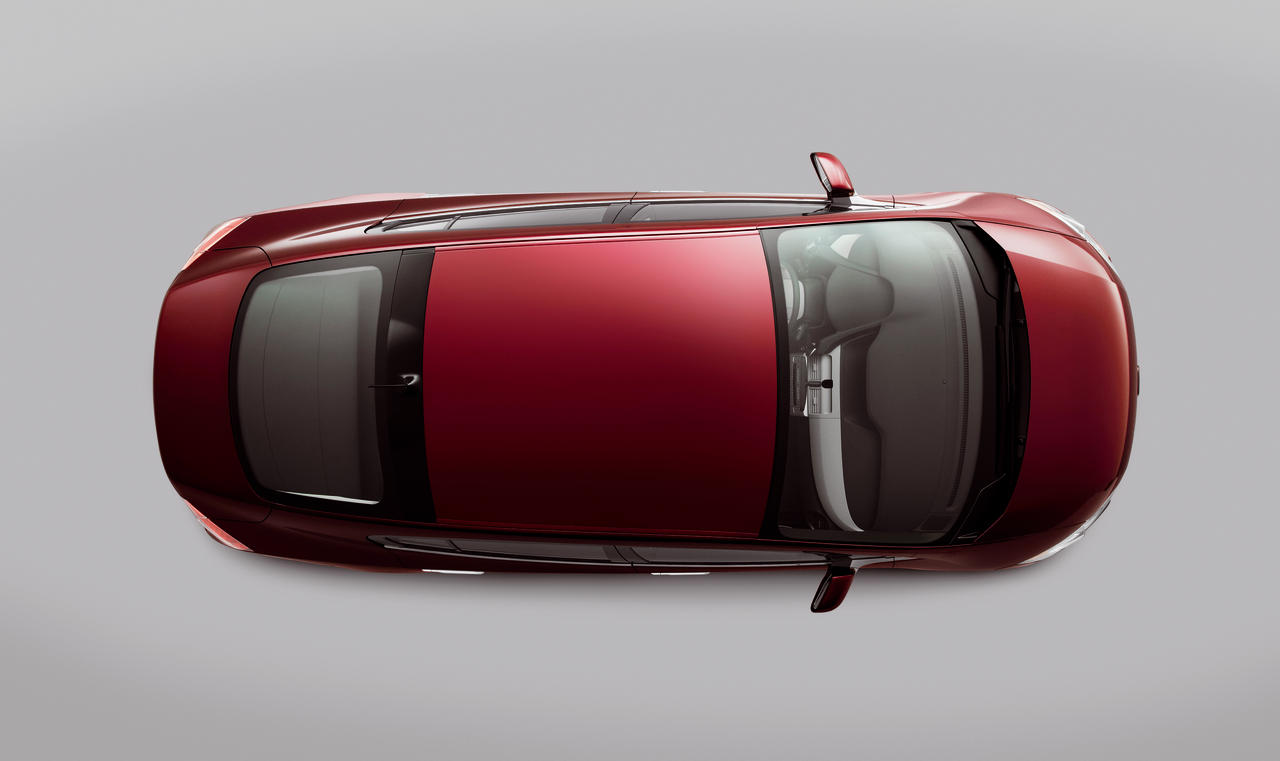

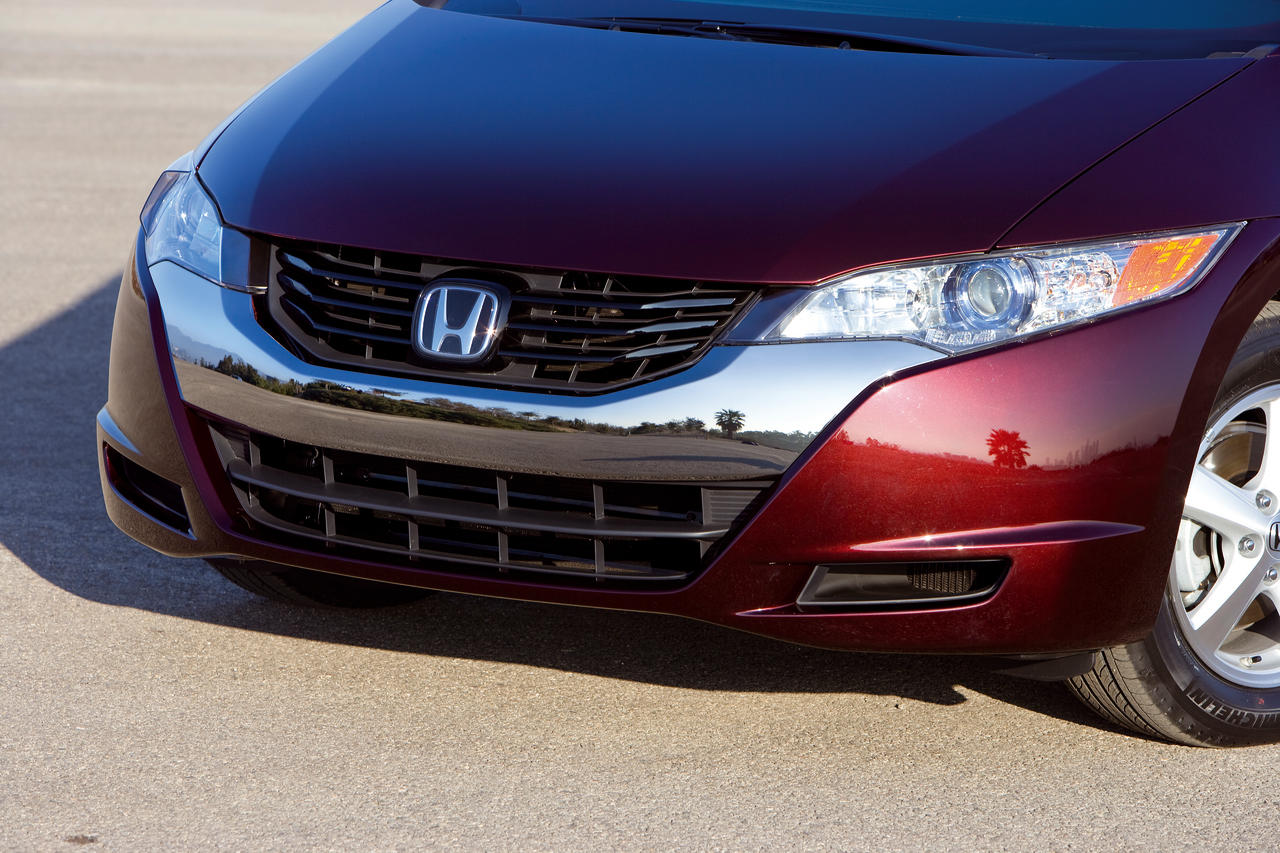

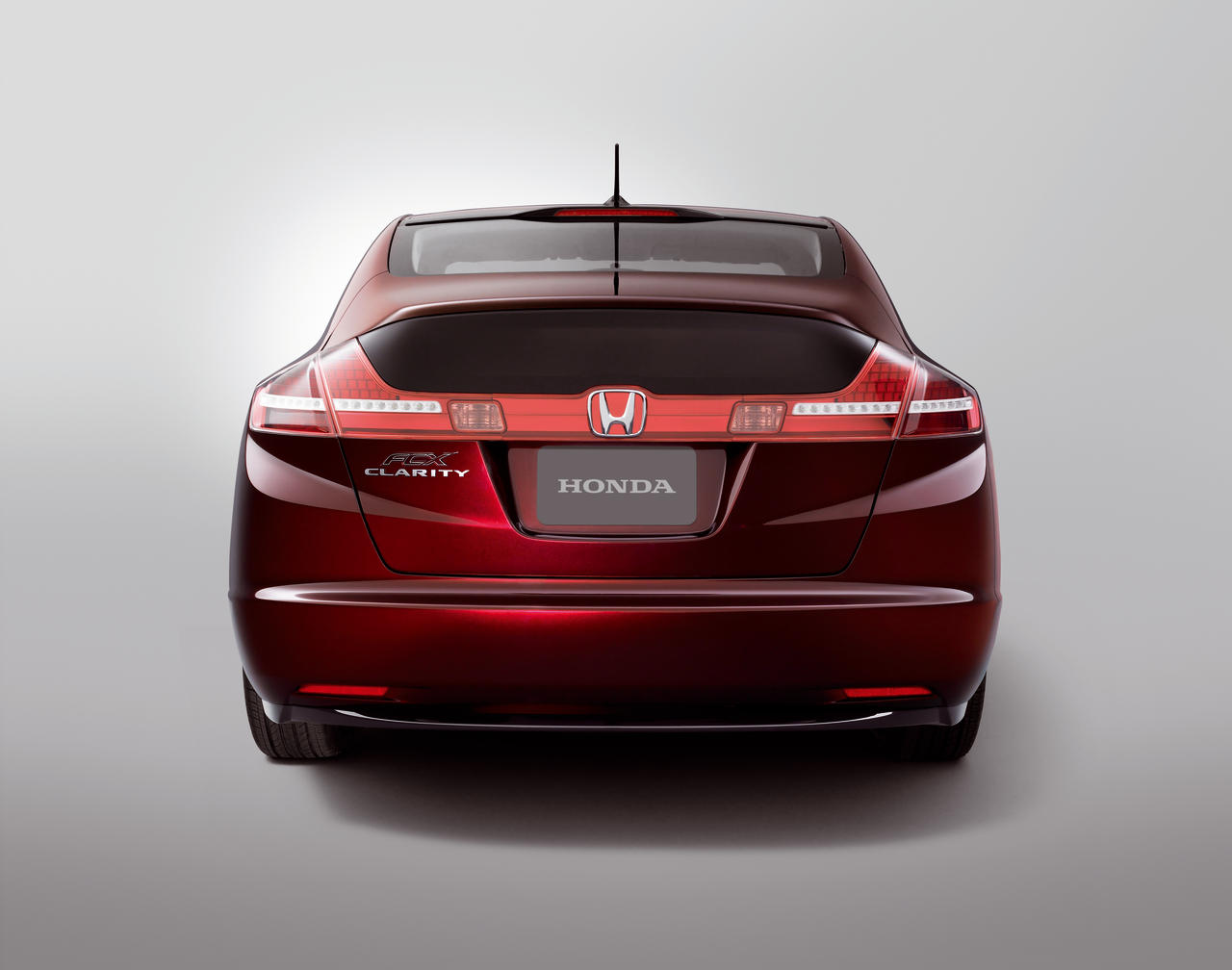

Honda FCX Clarity (2009)
Honda FCX Clarity (2009) - picture 1 of 16
Honda FCX Clarity (2009) - picture 2 of 16
Honda FCX Clarity (2009) - picture 3 of 16
Honda FCX Clarity (2009) - picture 4 of 16
Honda FCX Clarity (2009) - picture 5 of 16
Honda FCX Clarity (2009) - picture 6 of 16
Honda FCX Clarity (2009) - picture 7 of 16
Honda FCX Clarity (2009) - picture 8 of 16

ENGINEERING
Drive-by-Wire™ Throttle System •
Shift-by-Wire Gear Selector •
Front-Wheel Drive •
CARB Emissions Rating ZEV
V FLOW FUEL CELL STACK
Proton Exchange Membrane Fuel Cell (PEMFC) •
Power Output 100kW
Size (liters) 57
Weight (lbs) 148
ELECTRIC POWER STORAGE
Lithium-Ion Battery •
Output (Volts) 288
ELECTRIC MOTOR
AC Synchronous Permanent-Magnet Electric Motor •
Horsepower (SAE net) 134
Torque (lb-ft @ rpm) 189 @ 0 - 3,056
Power Output 100kW
BODY/SUSPENSION/CHASSIS
Double Wishbone Front Suspension •
Independent Multi-Link Rear Suspension •
Stabilizer Bar (mm, front/rear) 28.6 / 14.0
Electric Power-Assisted Rack-and-Pinion Steering (EPS) •
Steering Wheel Turns, Lock-to-Lock 3.34
Steering Ratio 16.1 :1
Turning Diameter, Curb-to-Curb (ft) 35.4
Power-Assisted Ventilated Front Disc/Solid Rear Disc Brakes (front/rear) •
Wheels 16" Aluminum Alloy/Resin Aerodynamic Wheels
All-Season Tires 215/60 R16 95H
EXTERIOR MEASUREMENTS
Wheelbase (in.) 110.2
Length (in.) 190.3
Height (in.) 57.8
Width (in.) 72.7
Track (in., front/rear) 62.2 / 62.8
Curb Weight (lbs.) 3582
Weight Distribution (%, front/rear) 53/47
INTERIOR MEASUREMENTS
Headroom (in, front/rear) 38.6 / 37.1
Legroom (in, front/rear) 41.9 / 37.9
Shoulder Room (in, front/rear) 58.8 / 56.2
Hiproom (in, front/rear) 57.5 / 54.6
Cargo Volume (cu. ft.) 13.1 (includes storage well)
Passenger Volume (cu. ft.) 100.8
Seating Capacity 4
EPA MILEAGE ESTIMATES*/CAPACITIES
Miles Per Kilogram (City/Highway/Combined) 77 / 67 / 72
Miles Per Gasoline Gallon Equivalent (GGE) City/Highway/Combined 79 / 68 / 74
Driving Range 280
Fuel Capacity (Nominal) / System Pressure 4.1 kg @ 5000psi
Required Fuel Compressed Hydrogen Gas
*Based on official EPA estimated range and fuel efficiency values for the 2008 FCX Clarity. Use for comparison purposes only. Actual mileage may vary.
SAFETY
3-Point Seat Belts at all Seating Positions •
Front Passenger-Side and Rear 3-Point Seat Belts with Automatic Tensioning System •
Driver's and Front Passenger's Seat Belt Reminder •
Dual-Stage, Dual-Threshold Front Airbags (SRS) •
Front Side Airbags with Passenger-Side Occupant Position Detection System (OPDS) •
Side Curtain Airbags •
Driver's and Front Passenger's Active Head Restraints •
Vehicle Stability Assist™ (VSA®) with Traction Control •
Collision Mitigation Braking System™ (CMBS™) •
Anti-Lock Braking System (ABS) •
Electronic Brake Distribution (EBD) •
Brake Assist •
Tire Pressure Monitoring System (TPMS) •
Daytime Running Lights (DRL) •
Side-Impact Door Beams •
Outboard Lower Anchors and Tethers for Children (LATCH) •
Child-Proof Rear Door Locks •
Emergency Trunk Release •
EXTERIOR FEATURES
Roof-Mounted Antenna •
Aluminum Alloy/Resin Aerodynamic Wheels •
Security System •
Remote Entry System with Trunk Release •
Variable Intermittent Windshield Wipers •
Body-Colored Power Side Mirrors •
Satin-Finish Door Handles •

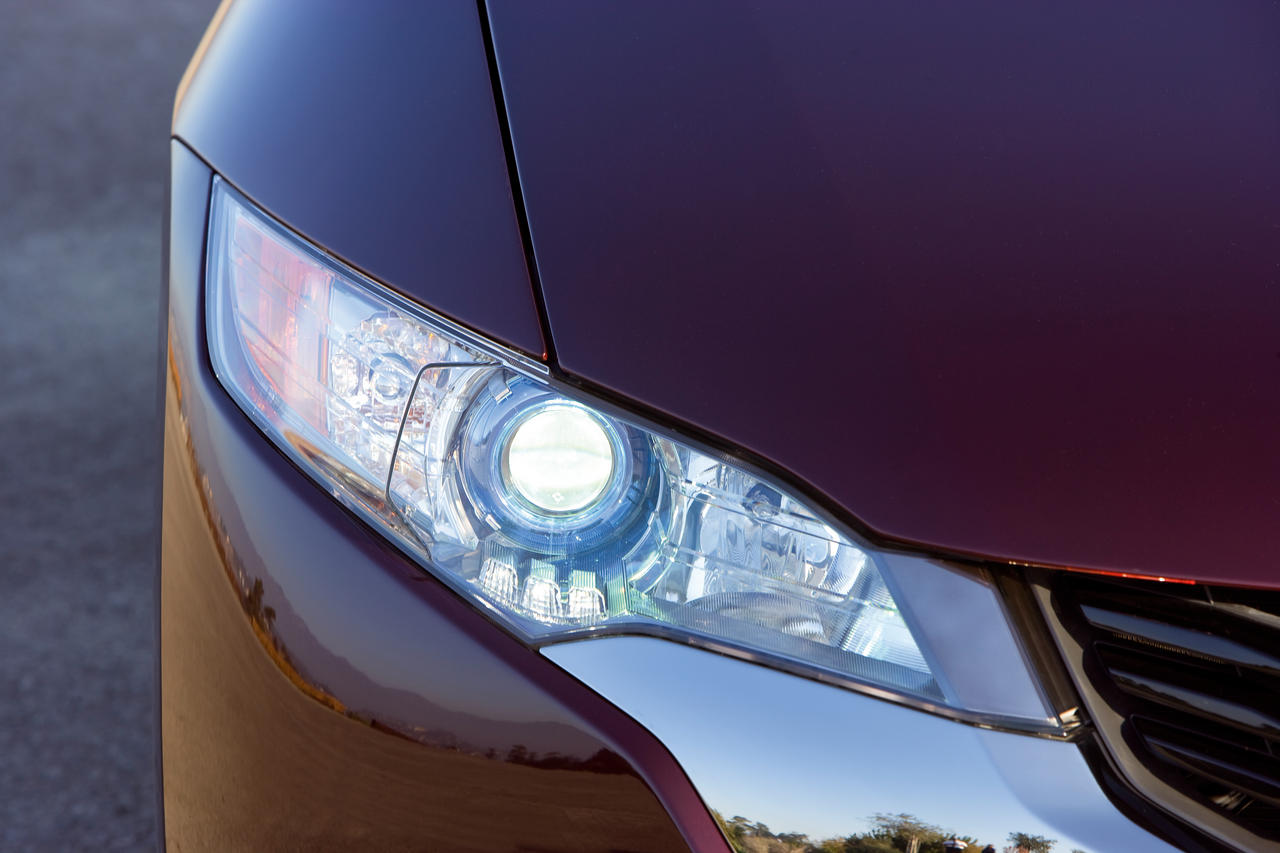

High-Intensity Discharge (HID) Headlights •
Combination LED Brakelights •
Aluminum Hood/Trunk/Fenders/Doors •
COMFORT & CONVENIENCE
Dual-Zone Automatic Climate Control System •
Honda Satellite-Linked Navigation SystemTM with Voice Recognition and Rearview Camera •
Bluetooth® HandsFreeLink® * •
Interface Dial with Scrolling and Multi-Line Display •
Vehicle Start Button •
Adaptive Cruise Control (ACC) •
HomeLink® Remote System ** •
Power Windows with Auto-Up/Down Driver's and Front Passenger's Windows •
Illuminated Power Window Switches •
Power Door Locks •
Illuminated Steering Wheel-Mounted Audio and Cruise Controls •
Steering Wheel-Mounted Navigation and Phone Controls •
Tilt and Telescopic Steering Column •
Beverage Holders, Front and Rear •
Front Passenger's Illuminated Vanity Mirror •
Blue Ambient Console Lighting •
Map Lights •
Sunglasses Holder •
12-Volt Power Outlet •
Lockable Glove Compartment with Light •
Driver- and Passenger-Side Seatback Pockets •
Remote Trunk Release •
Remote Fuel Filler Door Release •
Rear Window Defroster •
Cargo Area Light •
Floor Mats •
Side Door Pockets •
*HomeLink® is a registered trademark of Price Corporation, a wholly owned subsidiary of Johnson Controls™
**The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Honda Motor Co., Ltd., is under license.
SEATING
Honda Bio-Fabric-Trimmed Interior •
Heated and Cooled Front Seats •
AUDIO SYSTEM
AM/FM/CD Audio System with 6 Speakers •
MP3/Windows Media® Audio (WMA) Playback Capability •
XM® Radio * •
USB Audio Interface •
* Required XM® Radio monthly subscription sold separately after 90 day trial period. Installation costs and other fees and taxes may apply after initial trial period, including a one-time activation fee. Subscription fee is consumer only. All fees and programming subject to change. Subscriptions subject to Customer Agreement available at xmradio.com. XM service only available in the 48 contiguous United States. The XM name is a registered trademark of XM Satellite Radio Inc.
INSTRUMENTATION
Maintenance Minder™ System •
Digital Odometer and Digital Trip Meters (2) •
Door/Trunk-Open Indicators •
Exterior Temperature Indicator •
Instantaneous Hydrogen Consumption Meter 3-D Sphere
Hydrogen Fuel-Level Indicator •
Low Fuel Indicator •
Lithium-Ion Battery Charge and Assist Indicators •
Miles-to-Empty Indicator •
